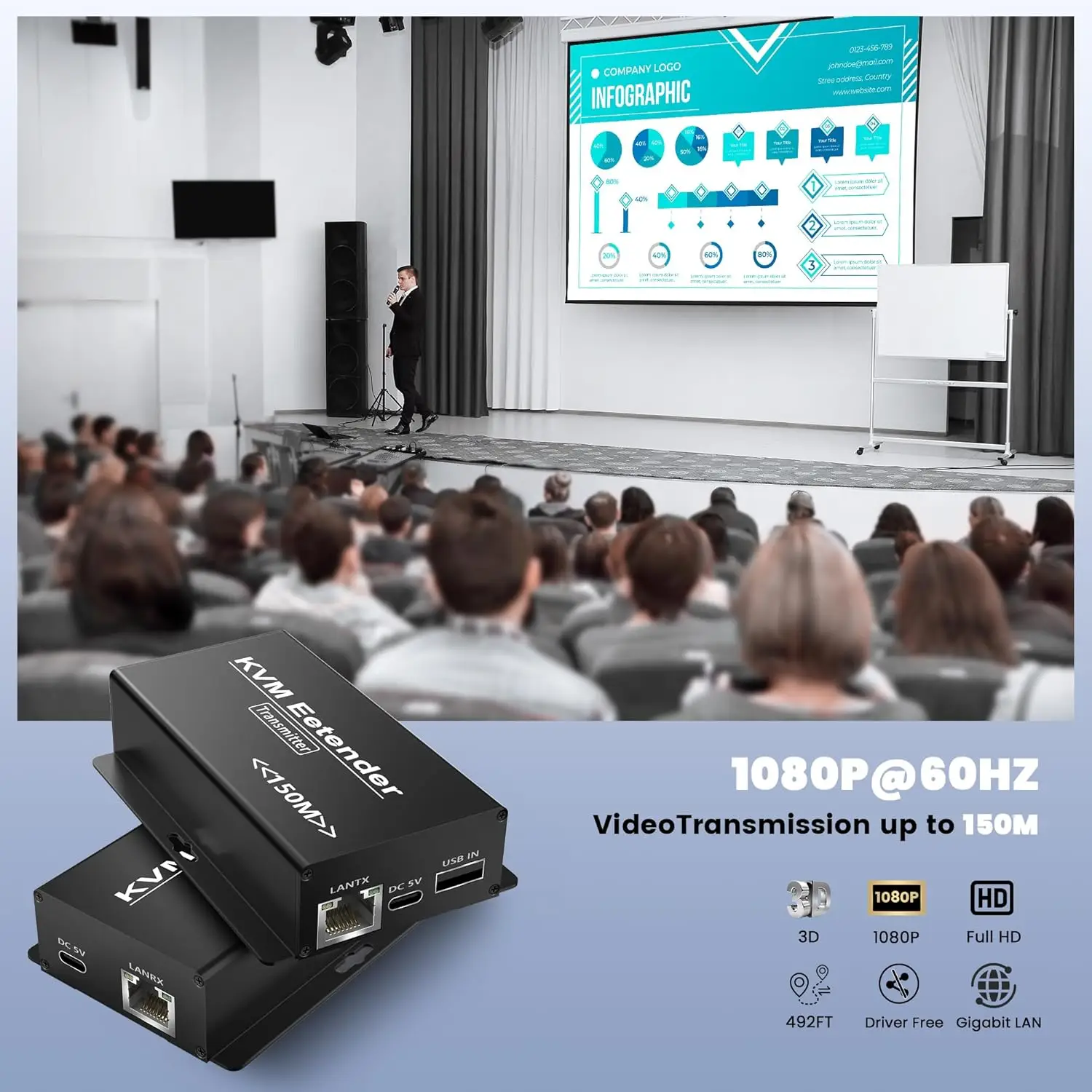

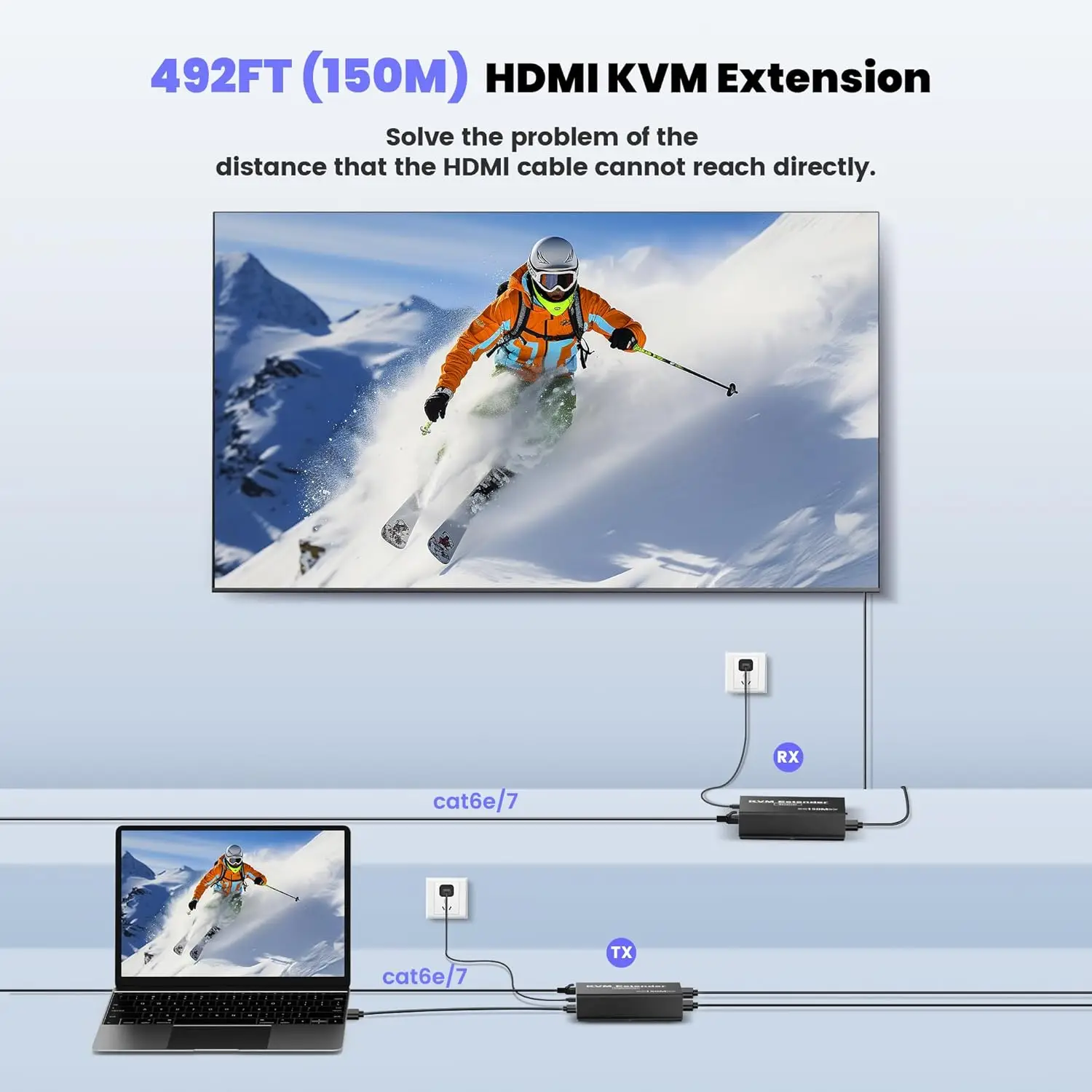

* [ 492FT 1080P HDMI 5 USB KVM Extender] HDMI Balun is divided into a transmitter and a receiver, which need to be connected via a single Ethernet cable. The maximum extension distance exceeds 492ft (150 meters), transmitting 1080P@60Hz video, supporting the HDMI 1.4 standard. At the receiving end, there are 2 USB 2.0 ports, supporting simultaneous connection of a mouse and keyboard.
* [ HDMI 1.4 & 1080P@60Hz] HDMI KVM extender has 2 HDMI ports: 1 located on the transmitter for local loop-out display and 1 on the receiver for remote display. All HDMI ports comply with the HDMI 1.4b standard and support the HDCP 1.4 protocol. It supports up to 1080P@60Hz 24-bit color during long-distance transmission. HDMI Balun transmits HDMI over Ethernet cable.

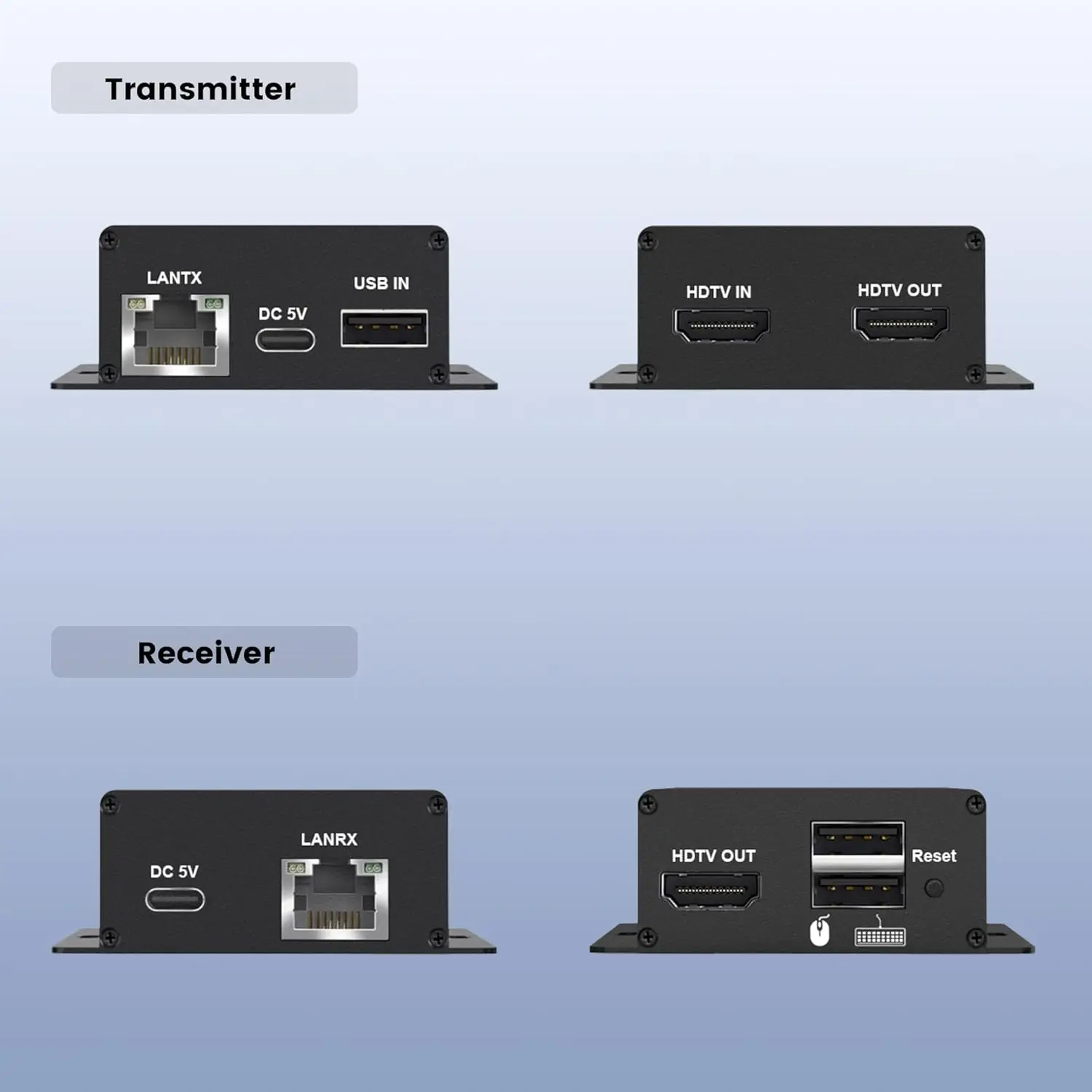

* [ USB 2.0 port] There are a total of 3 USB-A ports on HDMI cat5 USB KVM over ethernet: 1 located on the transmitter, which needs to be connected to a computer, and the other 2 on the receiver for connecting a mouse, keyboard, or other USB devices. HDMI Balun transmits USB over Ethernet cable.

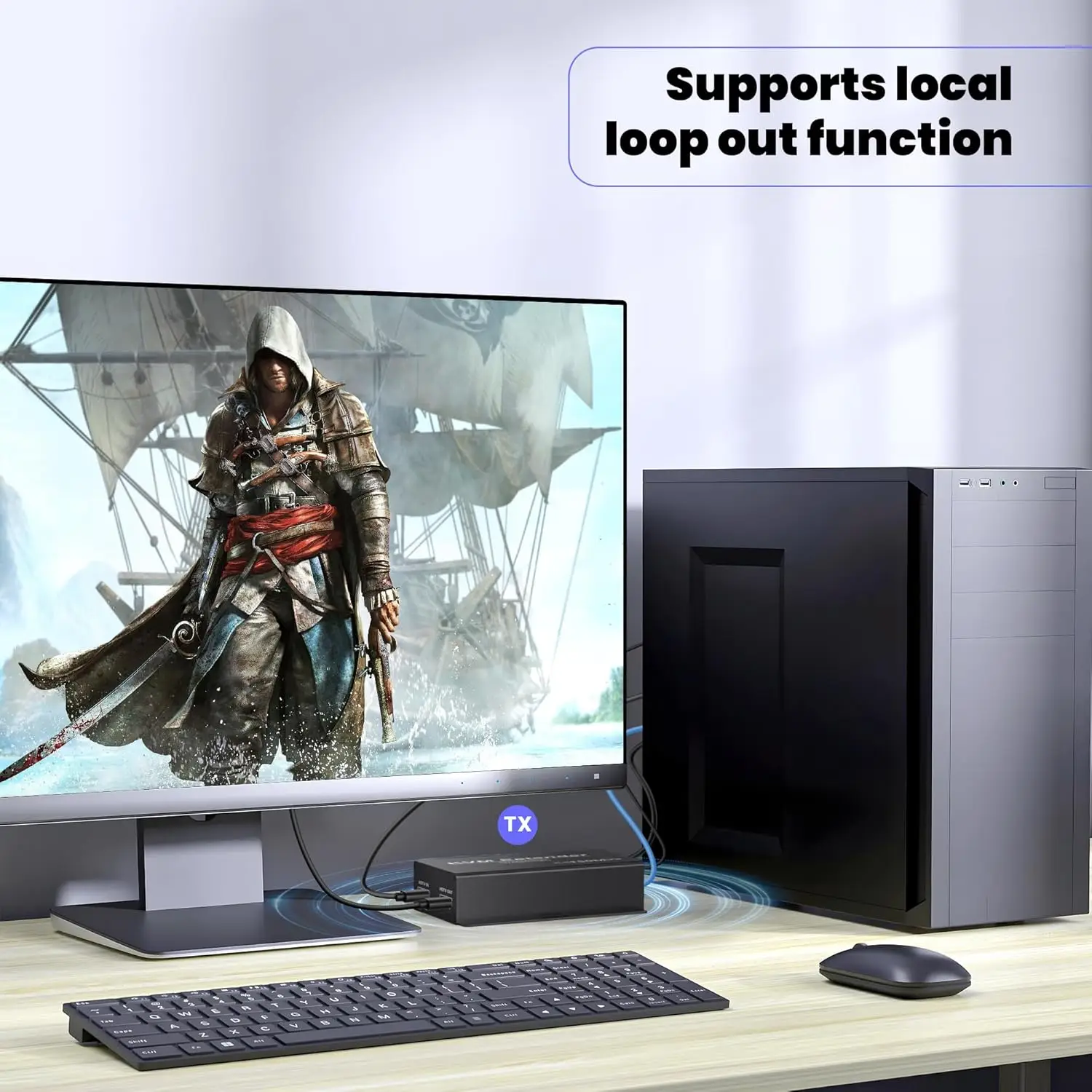

* [ Loop-out Function] HDMI KVM USB extender features a loop-out function allows technicians to monitor the display performance of the computer and perform equipment adjustments at any time without having to travel back and forth between locations. Even if long-distance transmission experiences interference or errors, the loop-out display ensures that local display remains unaffected, significantly enhancing the efficiency of product deployment.

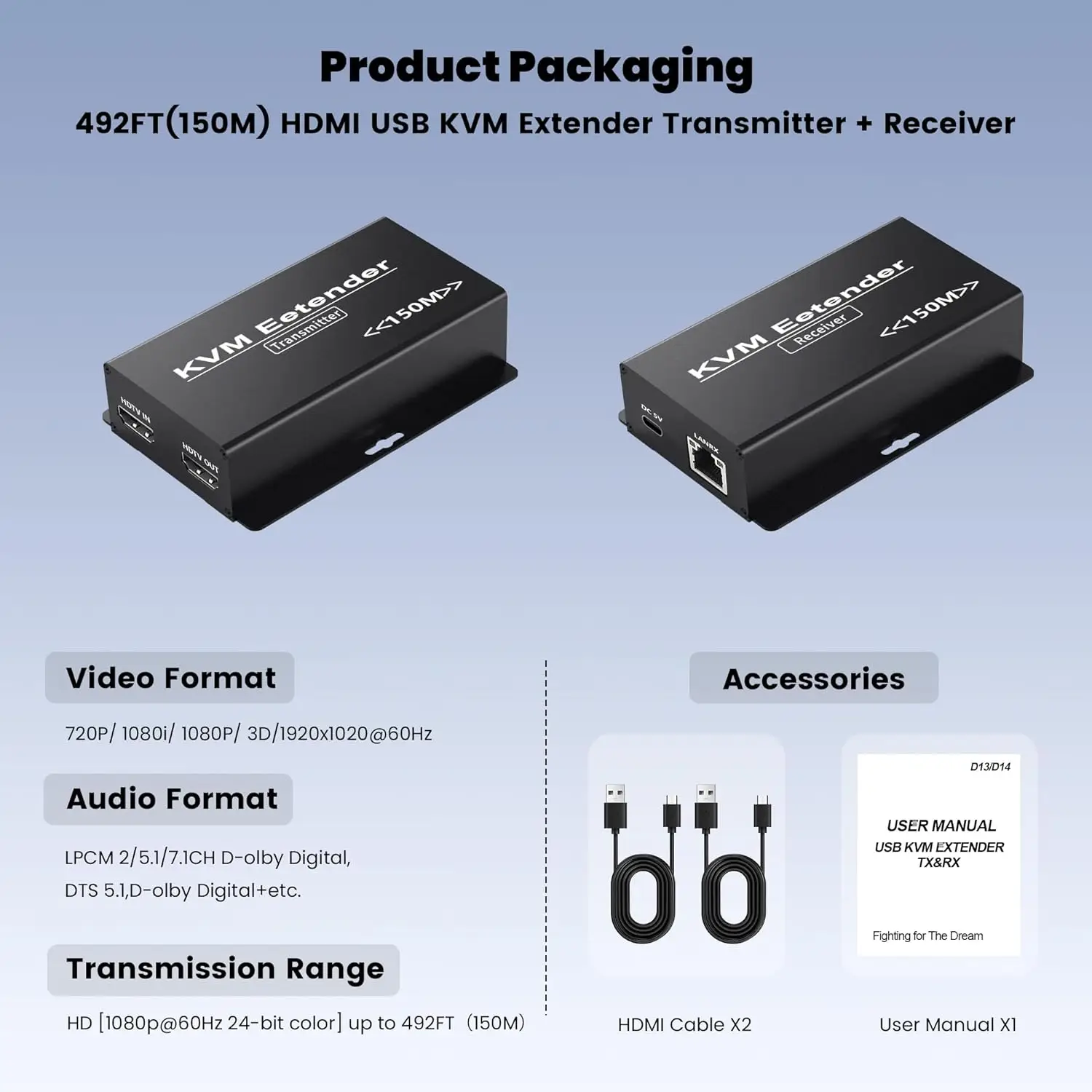

* [ You will get] 1 x Transmitter, 1 x Receiver, 1 x User Manual, and 2 x DC 5V/1A Power Adapters. Please note that this product must have power adapters connected at both the transmission and reception ends to function properly.
1. Transmitter x 1; Receiver x 1
2. User Manual x 1
3. DC 12V/1A Power Adapter x1
