1080P HDMI 60M (196ft) Extender point to multipoint (5pcs) with loop out and IR

Product Description

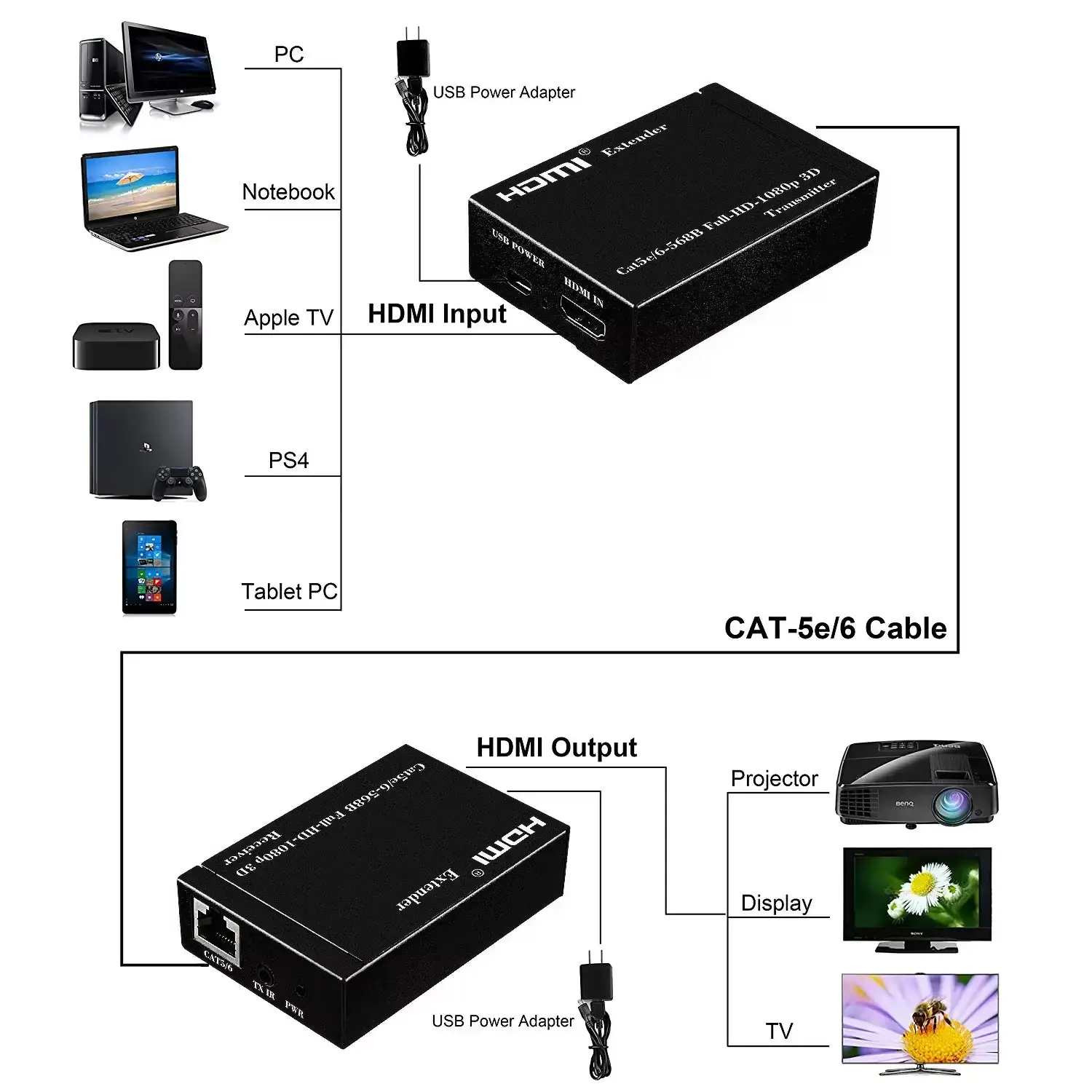

The extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60m, cutting down the cost. It is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

This product is out of stock.

Product is not available in this quantity.

Product Feature

*【HDMI Extender】This HDMI extender extends HDMI video & audio signal simultaneously up to at least 196ft(60 meters) over single CAT5e/6/7 ethernet Lan cable, saving your cost on long distance HDMI signal transmission.

*【Lossless Transmission】This HDMI ethernet extender transmits HDMI signals without singal loss, high picture quality. Zero latency HDMI transmission via pure copper Cat6 lan cable.

*【Wide Compatibility】This HDMI transmitter and receiver compatible with most of deivces with HDMI outputs, such as PC, DVD Player, PS3, PS4, HDMI streaming TV sticks.

*【Full HD 1080P】This HDMI to RJ45 extender supports maximum HDMI input resolution up to 1080P@60hz. Does not support 4k HDMI.

*【Plug and Play】No loss of quality and easy to install. No driver needed. Just plug and play.

*【POC】In HDMI to HDMI extender, POC (Power Over Cable) technology streamlines setup by removing the need for extra power adapters. Power seamlessly flows through the CAT6 cable, ensuring hassle-free installation. Simply connect the power adapter at the transmitter (TX) end, and the receiver (RX) effortlessly receives power via the CAT6 cable.🔥Tips: Only ONE power adapter is needed at either the TX or RX side—No need for both.

*【EDID Management】:The EDID feature in HDMI over ethernet extender enhances communication between the source device and the display, ensuring seamless signal transmission and optimal visual experience by accurately recognizing the display's capabilities.

* 【HDMI Loop Out】 - Additional HDMI Output on the Transmitter end Allows you to add a local Display for Monitoring

*【IR Remote Control】-- Support 20~60KHz wide Frequency IR signal transmission for controlling the source device, IR Emitter Cable and IR Receiver Cable are included

Product Specification

Length of CAT-6/ CAT-7 cable between Rx and TX	Up to 60 meters
HDMI Version	HDMI1.4a
Support audio input and output	DTS-HD/DTS/Dolby/DSD
Digital Dontent Protection	HDCP1.4 Compliant
Video Resolution	Input:640x480@60Hz ~1920x1200@60Hz TX HDMI Loop out:480p~1080p50/60Hz RX HDMI ouput:480p~1080p50/60Hz
HDMI Audio Formats	Input:PCM 2.0ch, 2.1ch, 5.1ch, 7.1ch Outout:PCM 2.0ch
Functionality	POC/EDID/DTS-HD/3D
Max bandwidth	148.5MHz
Max Band rate	1.5GbPS
Input video signal	0.5-1.5 volts p-p
Output DDC signal	5volts P-P （TTIL）
Input HDMl cable distance	≤10m AWG26 HDMI standard cable
Output HDMl cable distance	≤15m AWG26 HDMl standard cable
TX Max working current	510mA
RX Max working current	100MA
Power adapter format	AC （50HZ, 60HZ）100V-240V；Output
Operating Temperature range	（-15to+55 C）
Operating Humidity range	5to 90% RH（No Condensation）
Dimension （LxWxH）	83×55.3×22.8（mm）
TX Weight	100g
RX Weight	120g

Package Content

1. TX HDMI Extender x 1 and RX HDMI Extender x 1

2. Micro USB Power Adapter 5v/2A x 1

3. User's Manual x 1

4. Bi-directional IR cable x 2
