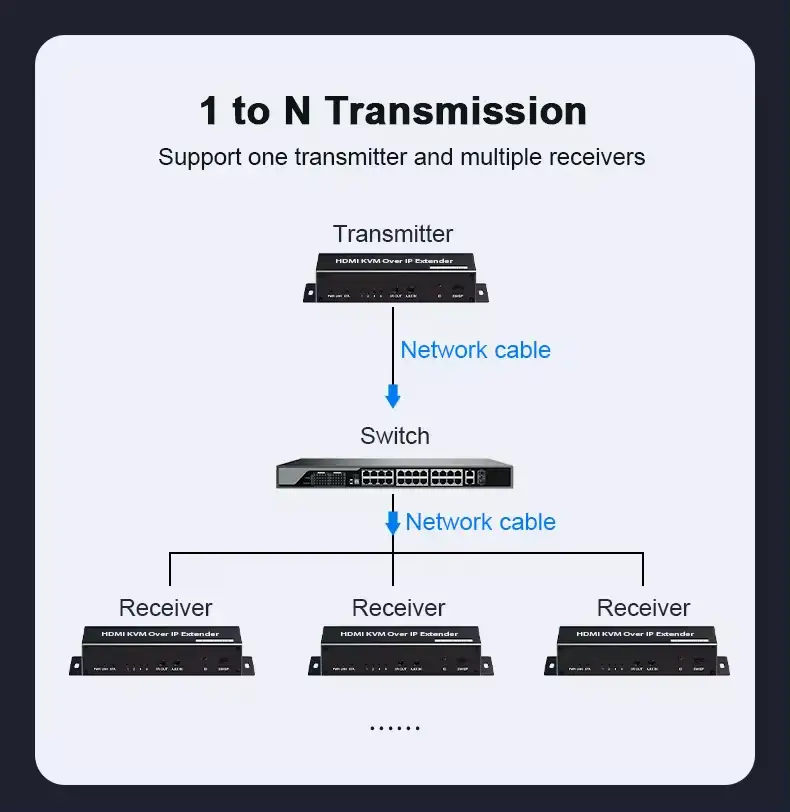

1. Modular design to assemble for Extender, Splitter，Matrix and Switcher for up to 1x256 (N TO 1 is not supported) applications.
2. Extends 4K 30P, 1080 60P HDMI signal up to 180m（600ft） over a single Cat5E cable, 100M Ethernet.
3. Use conventional Ethernet Switch for extension and distribution, and can be cascaded by the Ethernet switches for longer distance.

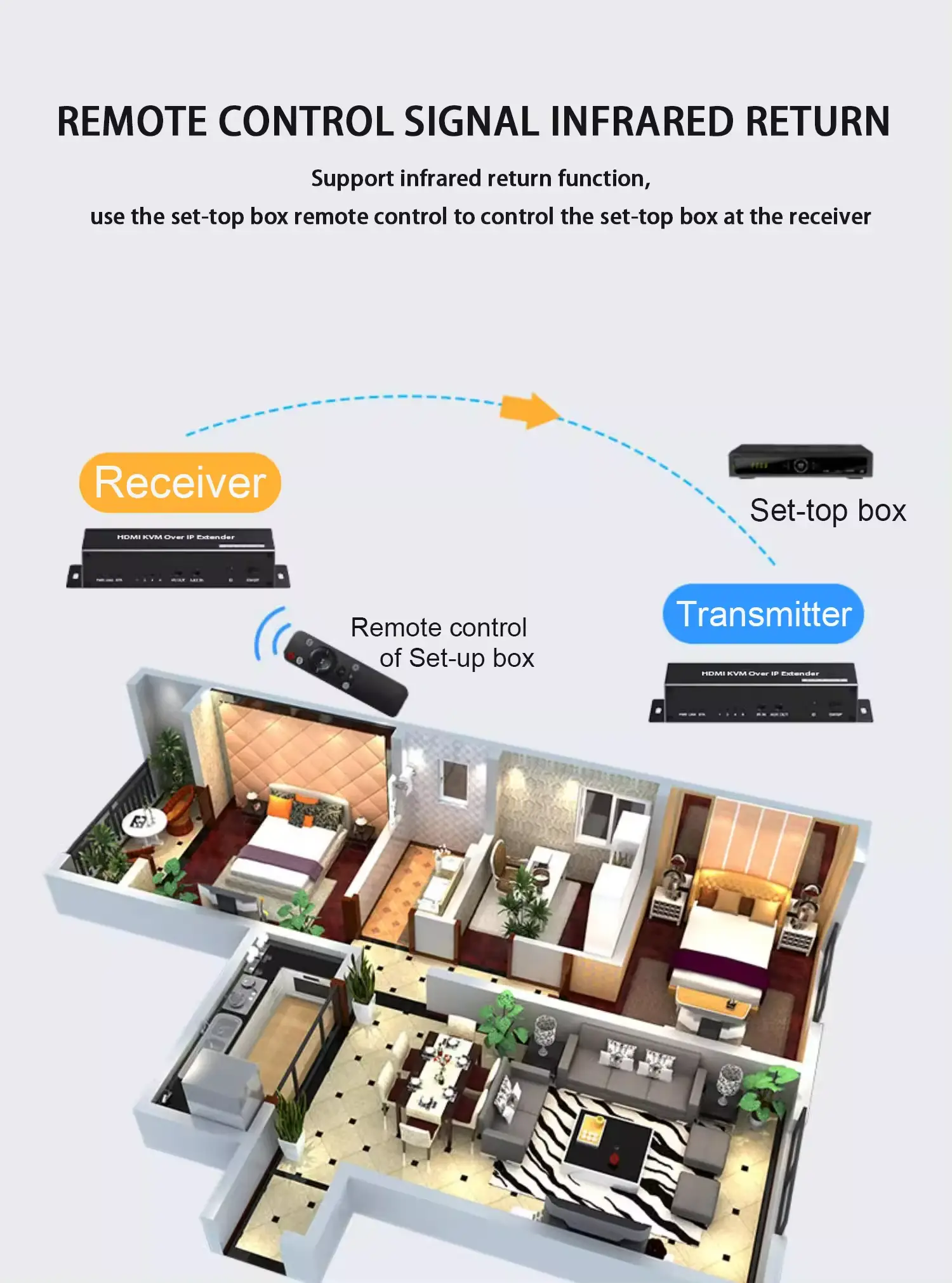

4. Supports IR （20KHZ~60KHz） extension.
5. Supports Stereo Audio over IP, independent to HDMI extension.

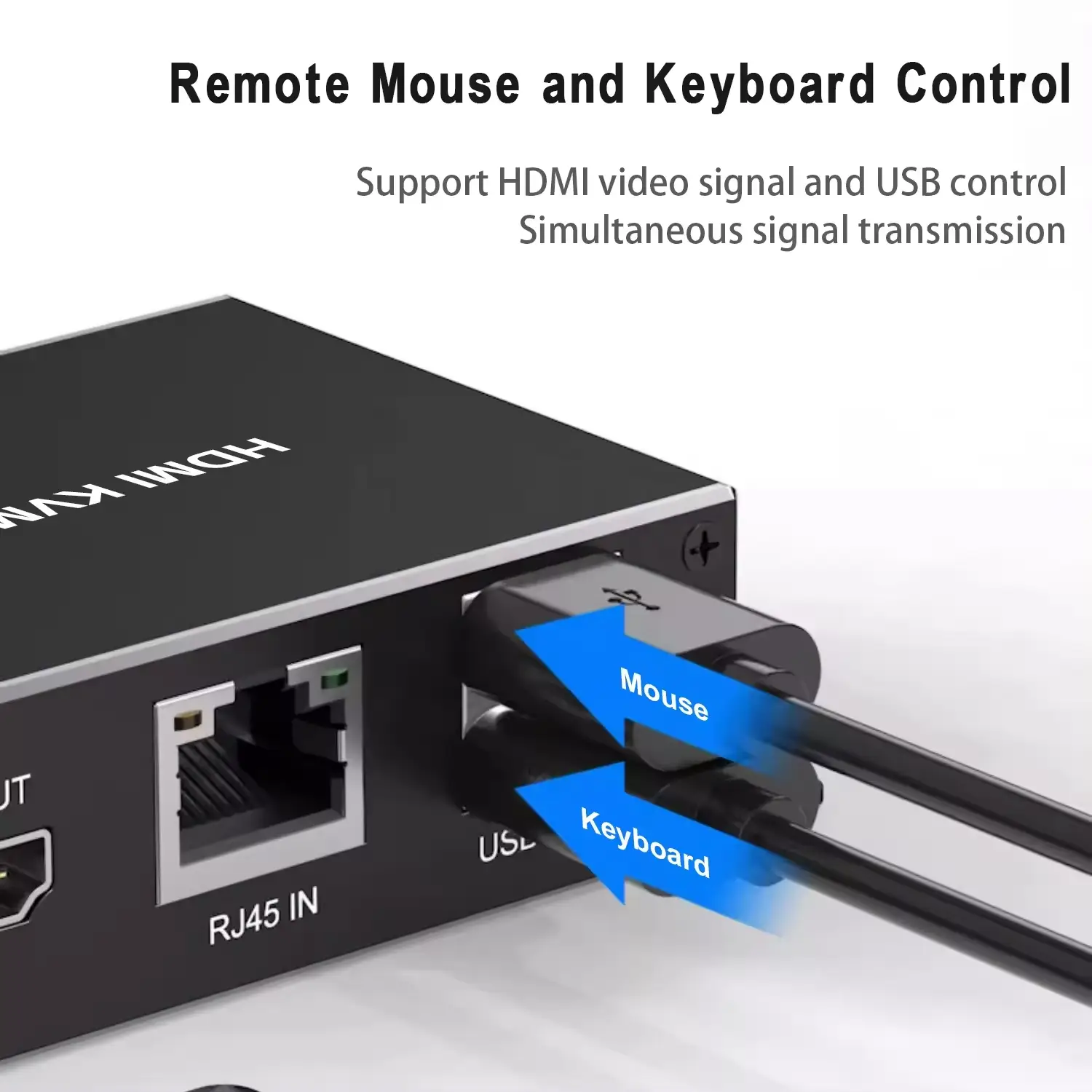

6. Supports USB （Keyboard, Mouse） extension over IP and KVM switch function by button selection.
7. Supports EDID pass-through and Transmitter resolution pass-through, including most popular 16:9, 16:10, 4:3 resolution and timing （Support list please refer to appendix）.
8. Supports Graphic/ Video mode selection and the latency is between 0.06-0.10 seconds.
9.Power supply is 5V2A with TYPE-C port.
10.The shell is made of aluminum alloy with fixed holes for easy installation.

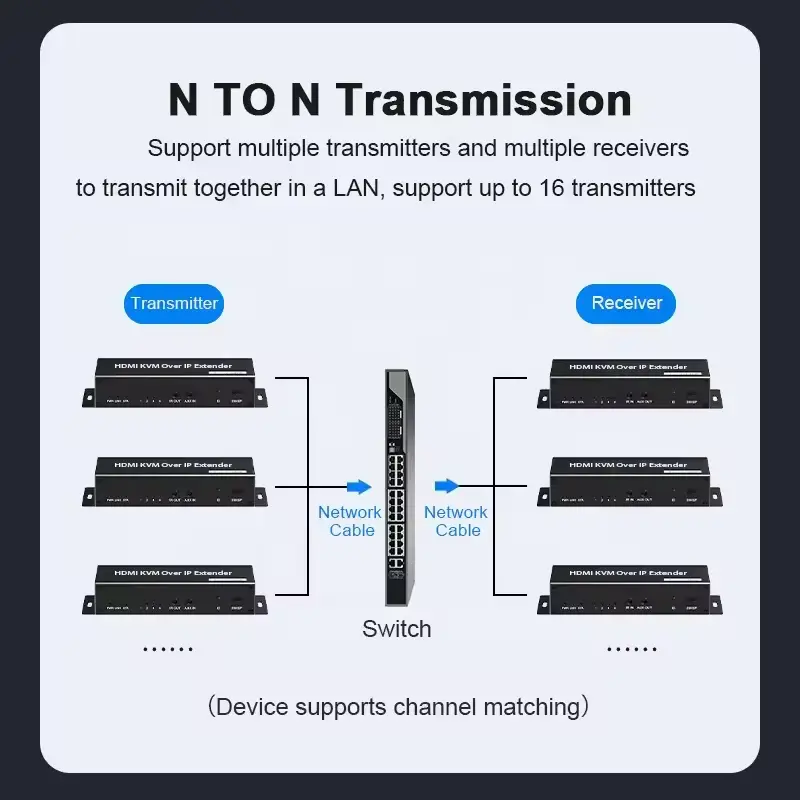

Note: N TO N mode means that multiple TXs are connect to multiple RXs through the Ethernet switch. Turn to SP and press the ID to pair the IDs. The indicator light of the same group should be the same and different from that of other groups
Note: USB KVM supports only mouse and keyboard. Other USB devices are not supported.
