4K60Hz USB 3.2 HDMI Capture

Product Description

4K 60FPS USB 3.2 HDMI Capture card is design by High-performance AXD2900+BGA196 Chipset, 6-Layer PCB,Aluminum Shell and 24K Gold Plated Corrosion-resistant Connectors to ensure superior signal transfer. They're Perfect for All Types of Game Console/Host to enjoy 4K 60Hz,2K@144Hz and 1080P@240Hz Audio Visual Pass-Through ，it also record 4K 60fps,2K@144fps and 1080P@240fps Visual UVC out

This product is out of stock.

Product is not available in this quantity.

Product Feature

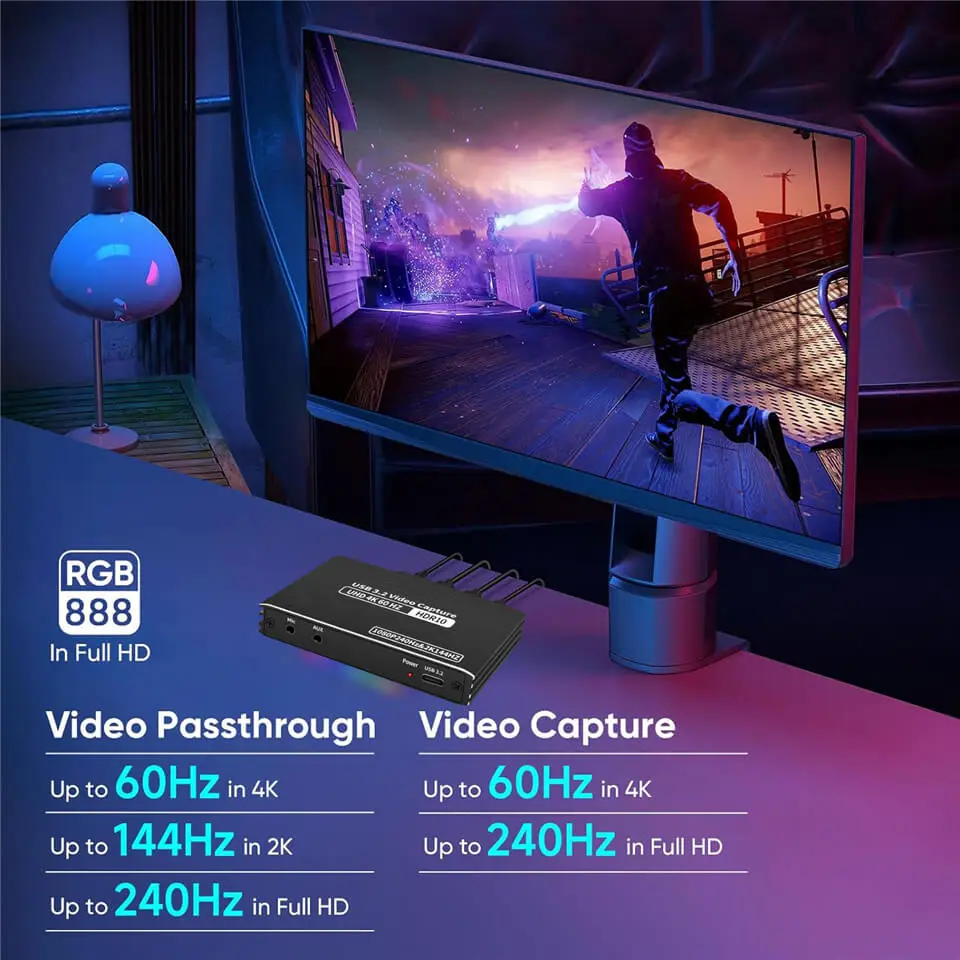

1. HDMI Visual Enjoyment,4K@60Hz,2K@120/144Hz,1080P@60/120/144/240Hz

2. UVC USB 3.2 out,4K@60FPS,2K@120/144FPS,1080P@60/120/144/240FPS

3. VRR,HDR 10,RGB 4:4:4/8:8:8

3. Audio Enjoyment,Dolby ATMOS,Dolby Digital Plus,DTS, DSD etc.

4. Color space:NV12,I420,YUY2 and MJPEG

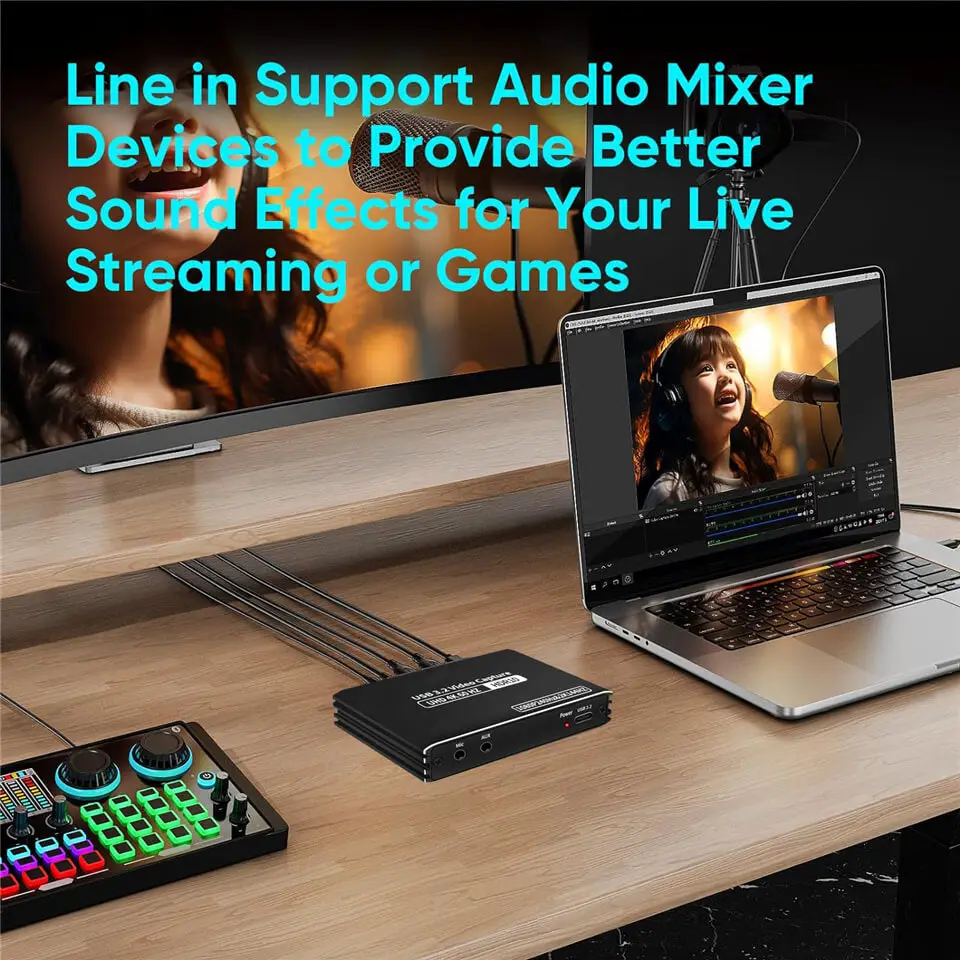

5. Ultra-low Latency,3.5mm Audio & Mic

6. Unparalleled Compatibility,Windows 10 or higher,Mac OS X 10.10 or higher

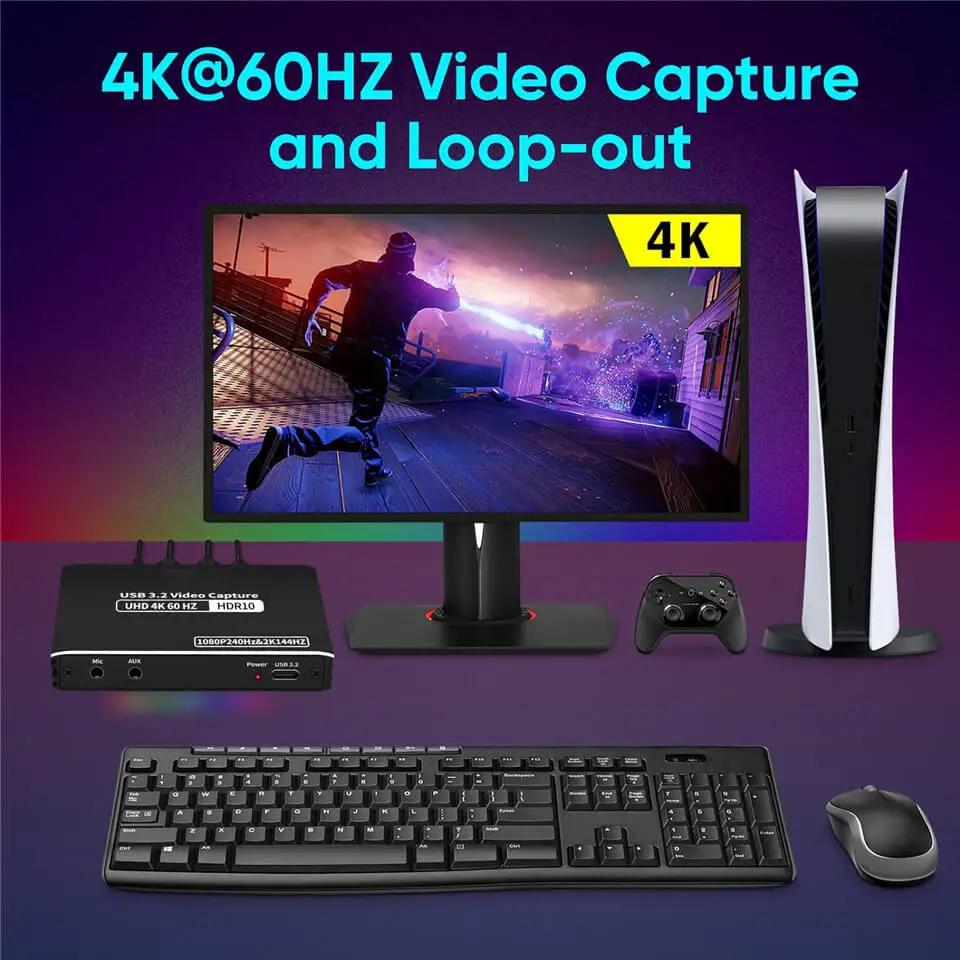

7. Connect Game Console/Host,Input:PS5/4,XBox,Roku, PC,Laptop etc,Output: HDMI TVs, projectors, monitors.

8. Certified by CE,FCC & ROHS,One Year Free Warranty.

Buy with confidence, we have obtained the relevant certification to ensure safety and reliability.

‍

Product Specification

Maximum input resolution	4K@60Hz
Maximum Output resolution	4K@60Hz
HDMI Version	HDMI 2.0b and HDCP 2.3
Visual Features	HDR 10, VRR, Dolby Atmos, Ultra-low Latency
Support video format	8/10/12bit Deep color
Video output format	NV12, I420, YUY2, MJPEG
UVC Output Specifications	- fps (NV12/I420)
	- 2560x1440@60 fps (YUY2)
	- 3840x2160@60fps, 2560x1440@120/144fps, 1920x1080@120/144/240fps (MJPEG)
HDMI Visual Enjoyment	4K@60Hz, 2K@120/144Hz, 1080P@60/120/144/240Hz
UVC USB 3.2 Output	4K@60FPS, 2K@120/144FPS, 1080P@60/120/144/240FPS
Audio Enjoyment	Dolby Atmos, Dolby Digital Plus, DTS, DSD etc.
Support audio format	L-PCM, Ultra-low Latency, 3.5mm Audio & Mic
PCB	6-layer with built-in ESD protection
Input cable distance	≤15m,AWG26 HDMI standard cable
PC Hardware Interface	HDMI, USB3.0
Input Interface	HDMI
Support OS	Windows, Android and Mac OS.
Support Acquistion software	VLC, OBS, Amcap, etc.
USB Standard	USB Video Class(UVC) specification; USB video 1 .5 and 1.0 standard
Max working current	0.4A/5VDC
Operating Temperature range	(-10 to +55°C)
Dimension (L x W x H)	96x62x15 (mm)
Weight	0.15kg

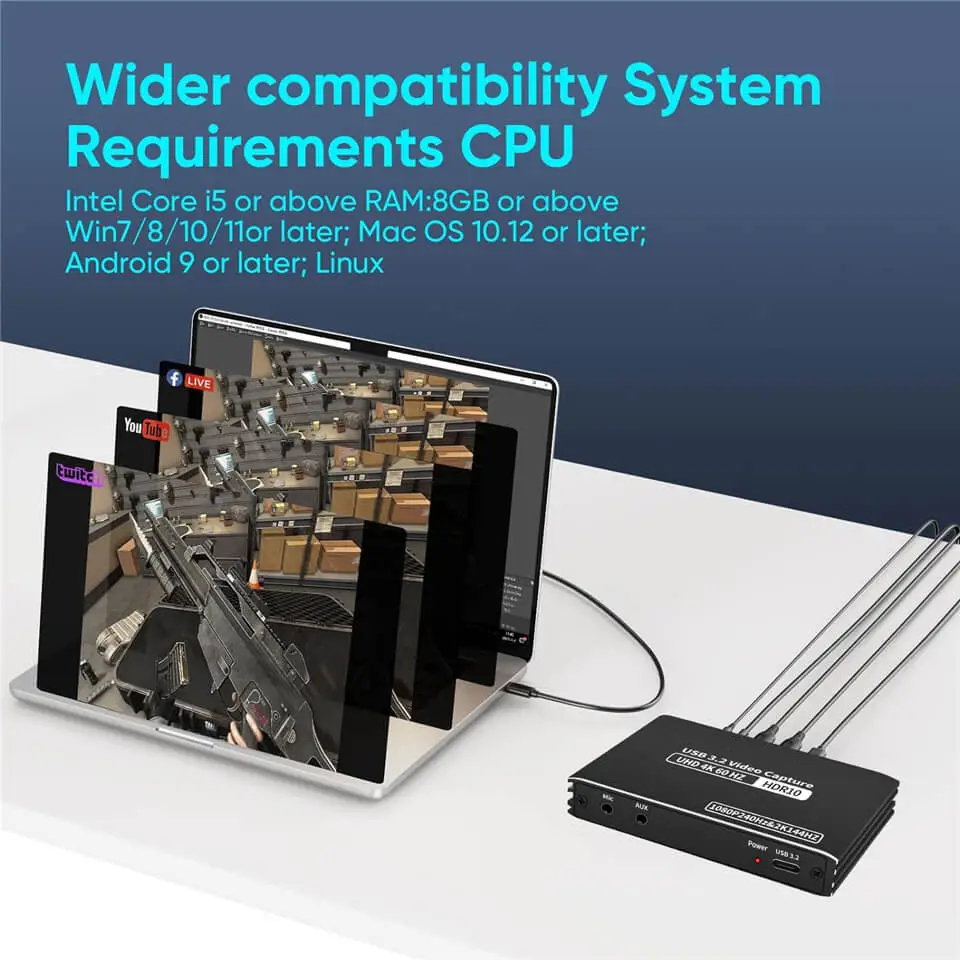

Hardware requirements	Windows 10 or higher Mac OS X 10.10 or higher Intel i7 or higher NVIDIA GeForce GTX 1050 Ti or higher (or equivalent) 8 GB RAM or higher Each of device will pass 6 hours rigorous testing before delivery.

Package Content

1. 4K HDMI Video Capture Card x 1

2. USB3.0 Cable x 1

3. User Manual x 1

‍
